IEC60092 STANDARD MariTox Marine Flame Retardant Power & Control Cables

TI/TU (MTX300) 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables (Single Core)

Flame Retardant IEC60092 STANDARD Offshore & Marine cables

Application

These MTX300 0.6/1 kV IEC60092 STANDARD Offshore & Marine unarmoured power & control cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free.

Standards

 IEC 60092-350/353/360
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

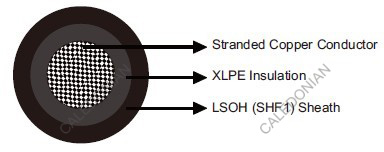

Construction

 Conductors: Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request.
 Insulation: XLPE.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification

 Single core: Black

Mechanical and Thermal Properties

Bending Radius for Fixed Installations: 6×OD (OD>25mm); 4×OD (OD ≤25mm)
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight

3MTX300 1RZ1-R Single Core 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)
Part No. Construction
No. of cores×Cross
section(mm²)
Nominal Insulation
Thickness mm
Nominal Sheath Thickness mm Nominal Overall
Diameter mm
Nominal Weight kg/km
MTX300-1RZ1-R-1C1.5 1×1.5 0.7 1.0 5.0 40
MTX300-1RZ1-R-1C2.5 1×2.5 0.7 1.0 5.4 50
MTX300-1RZ1-R-1C4 1×4 0.7 1.04 6.0 70
MTX300-1RZ1-R-1C6 1×6 0.7 1.04 6.6 90
MTX300-1RZ1-R-1C10 1×10 0.7 1.04 7.5 130
MTX300-1RZ1-R-1C16 1×16 0.7 1.04 8.5 190
MTX300-1RZ1-R-1C25 1×25 0.9 1.1 10.4 295
MTX300-1RZ1-R-1C35 1×35 0.9 1.1 11.7 380
MTX300-1RZ1-R-1C50 1×50 1.0 1.2 13.3 510
MTX300-1RZ1-R-1C70 1×70 1.1 1.3 15.5 720
MTX300-1RZ1-R-1C95 1×95 1.1 1.3 17.4 970
MTX300-1RZ1-R-1C120 1×120 1.2 1.4 19.4 1220
MTX300-1RZ1-R-1C150 1×150 1.4 1.5 21.5 1505
MTX300-1RZ1-R-1C185 1×185 1.6 1.5 23.8 1865
MTX300-1RZ1-R-1C240 1×240 1.7 1.6 26.7 2420
MTX300-1RZ1-R-1C300 1×300 1.8 1.7 29.6 3015
